Whitey Gets it's 6 cylinder-Short Shifter!

   Whitey - A 1975 Spitfire 6 Cylinder and Fuel Injected Conversion

   Whitey's Home Page    The 6 cylinder     Fuel injection ECU    Custom Manifold
The ECU location   96 Amp Alternator   A Remote oil filter   Aluminum Radiator
 Engine Position comparison     Frame mods    Firewall mods     An engine analysis

 Paintwork

ODD paint photo problems!    compounding, buffing polishing
 new tranny position   Shortening the shifter   a new tranny tunnel   the new clutch line
  molded carpet mods    Outdoors in the Sun!   Engine Test stand     F.I. Home Page
  GT6 brakes    Self adjusting rear brakes     full engine out in the sun    A Sneak Peek!
  CV axles and custom a-arms   The other half of the story





Well with the engine moved back 6", What to do with the shift lever. Moving IT back 6" just won't do. Luckily, the 3-rqil shifter extension, makes it easy to modify to a new length. I simply cut it and the main linkage rod down by 6" and re-welded everything.

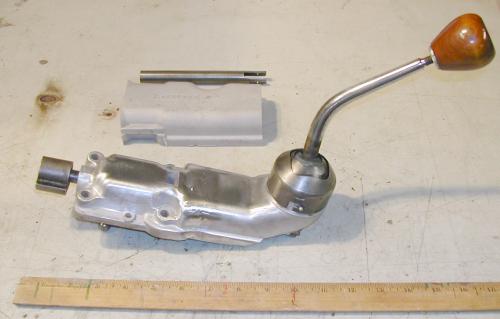

The two items above the modified extension, are the pieces cut out from the arm and the original shift rod.
