   Cleaning up the old and cracking paintwork on the bonnet started while on the car. The underside was so covered in 35+ years of oil and grime I decided to remove it so I could turn it over and scrub it well. I took it outside in the grass and scrubbed the heck out of it with Simple Green and a scrub brush. A 1/2 gal of Simple Green latter, and I was finally happy. Then came the sanding. Man...I should invest in a sandpaper company!

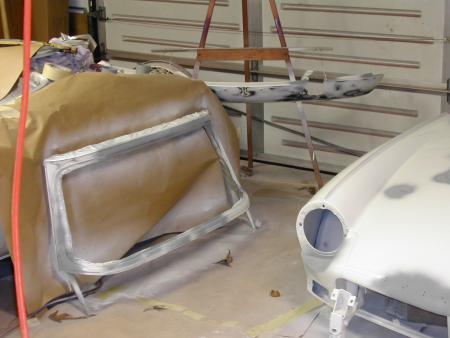

   I went ahead and removed the lower front valence panel and windshield frame. I figured I'd treat these all as one separate project. I needed a new windshield seal anyway (all dry rotted) and I needed to strip all the cheap black paint off both sides of the valence panel.

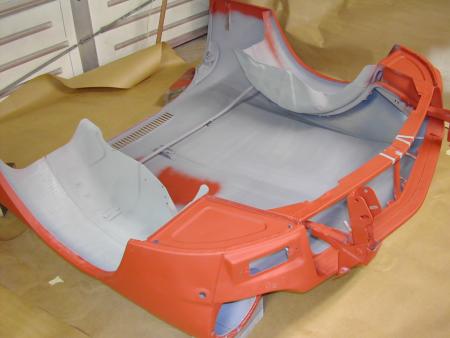

    After a full sanding, both sides got coats of primer. The red primer was nearly completely sanded off before the sealer was applied. The gray here is a coat of primer sealer.

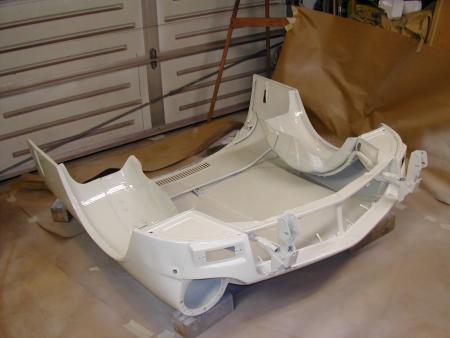

   The inside of the bonnet got a complete three coat paint job. Man oh man... getting an HVLP gravity spray gun into those nooks above the inner fender wells was a pain!
Now I see the advantage of a pressure fed, two hose spray gun! The top side in this photo. had received a single coat before being flipped over and set on blocks on the fender beads.  HHmm... can't do that on a squaretail bonnet.  :-)

The top (outer) surface final 'white coat' will happen after it's back on the car.
