Section #2 - Whitey's Spit6 conversion Process                     F.I home page

      Phase I    -  The initial cleanup

On the left, as purchased. On the right, after completion of the initial cleanup and painting work throughout the entire engine compartment.

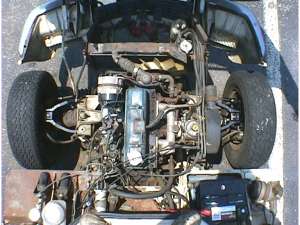

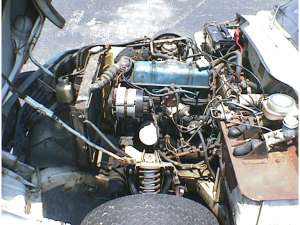

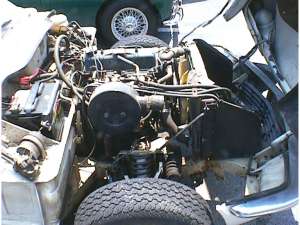

As purchased... all rusty and messy. It's all in relatively
good shape, just dirty and old... probably all dry rotted.

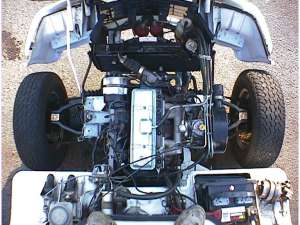

      The end of phase I clean up. Fire wall painted and
    all plumbing hoses have been replaced.




You can see all the paint is gone from brake
fluid leaks from the past. The wiring harness
is a mess. Lots of scrubbing needed here to
see what's needed.

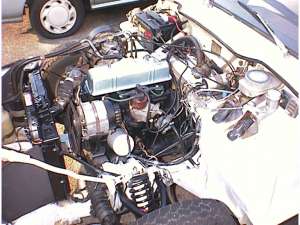

With all the wires cleaned up and the brake
fluid damage cleaned up, sanded out and
repainted near the master cylinders up on
the fire wall.



With all the variations of vacuum and breather plumbing over the years, it's going to take me a bit to figure out what's what here.

Well.... all the plumbing is now leak free and the paint
has been cleaned up. The air filter and manifolds
were cleaned up and painted.



    Phase II -       Engine Paint and Dual HS4's   4/01

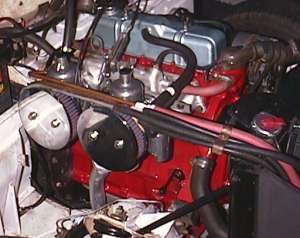

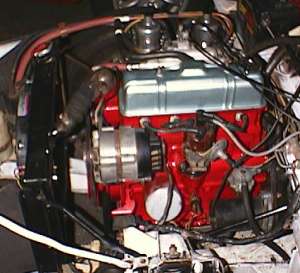

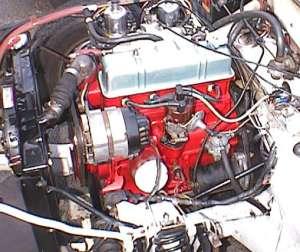

   With most of the ancillaries unmounted, the engine was painted in place with Ford Red Plasti-Kote 500° engine paint The distributor is still waiting for the rebuild to be completed, hence it's missing in this photo.

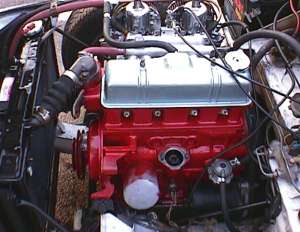

The valve cover was painted silver. The Aluminum valve cover hasn't been installed yet.     The stock side box mounted electronic ignition distributor with vacuum retard, was replaced with a rebuilt earlier model that now uses vacuum advance and has a Pertronix Ignitor electronic Ignition conversion in it.



     Phase III -         After new Flattop Pistons 12/01

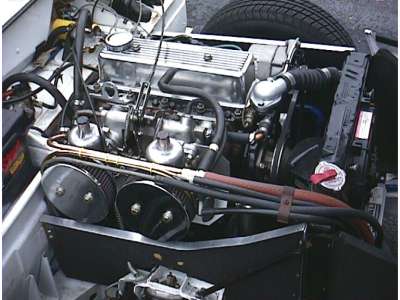

A new coat of black paint, the head all torqued
down, and the rockers back on

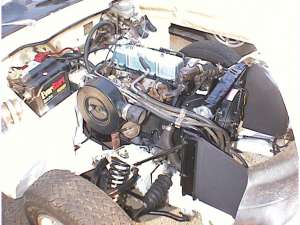

up and running
