      Well you can go out and buy the generic Goodrich brake lines that all the big catalog companies sell for top dollar, (I'm not knocking Goodrich, I have them on some of my other cars) or you can pay reasonable prices and buy what I believe is even better quality for the same $$$.
        Personally, I prefer to shell out the little extra $$$ and acquire the best quality I can find. So... I bought real Flotec lines. These have heavier Teflon tubing and nicer, heavier couplings.

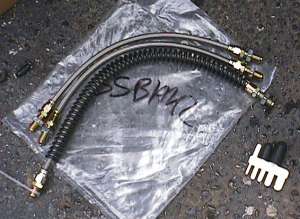

One front line...with added cover and two rear lines



      I removed the flexible plastic spiral covers from the original lines and placed them on the stainless steel lines. Why?  Why not! A little extra protection can't hurt right!
      What I really like about these lines are the couplings. They're much heavier than the Goodrich lines. These hoses are slightly thicker/heavier and the couplings are a nut/bolt lock down rather than a pressure swage crimp. This allows the hoses to flex closer to the couplings, and they don't need those 'protective' guides that are swaged onto the Goodrich hoses.

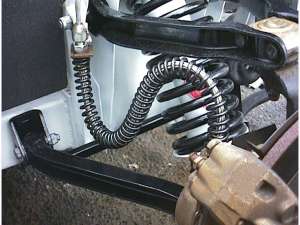

New braided line installed with extra cover

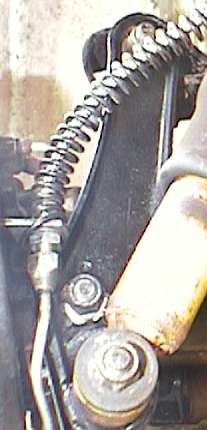

left rear line with coil cover
looped over the bracket



The rear line has just enough free play as to not be stretched at maximum axle travel, yet short enough to not get in the way.
      I covered the rear lines the same way (with the old spiral covers).  Just to keep the covers in place, I wrapped the last spiral over the brackets. This will keep them extended and in place as they are relatively loose over the smaller than stock diameter braided lines.
