     STEBRO- STÉ' BRÕ , and its distinctive BUG trademark are known in the performance and import aftermarket since 1956. They offer quality stainless steel exhaust systems and tips for a wide variety of cars.
       Stebro exhaust systems are made from 409/304 (14 gauge) stainless steel. Tips, flanges, internals and brackets utilizing type 304 SS while pipe and shells are type 409 SS.
      The high quality workmanship and materials make Stebro a name you can depend on and all systems come with a non-transferable LIFETIME LIMITED WARRANTY.



(WOAH! Check out those Masserati box prices!)

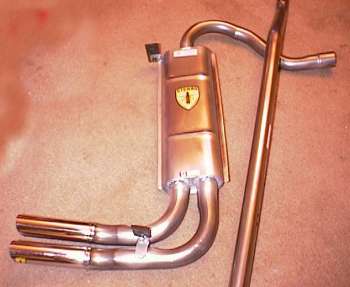

    Well it was another one of those "....in the right place at the right time deals....".  Not only did I acquire an original Stebro Stainless Steel rear box to fit my '75 Spitfire, but the vendor had the correct, matching stainless steel center pipe.

    Even though Stebro is still around, this model exhaust system for the Triumph Spitfire hasn't been in production for over ten years. But even after sitting around for ten years, this unit looks like it was made yesterday!

****
   The main box is a bit shorter than a stock O.E.M. unit. The twin outlet tips are also a larger bore than stock. The 'in' pipe is 1.7" ID. and the two outlet pipes are 2.0" each. The main box weighs just shy of 20 pounds (US), while the stock box is closer to 12 pounds.





The pipe label complete with
Stebro sticker p/n# TR1006		 The main box label complete with
Stebro sticker p/n# TR8006



Polished stainless twin 2" diameter out tips

No seams Completely welded
rather than crimped.



Even the mount for the rear of the center pipe (normally fastened to the front of the rear differential mount via a clamp) is made of stainless and is welded right on the pipe.

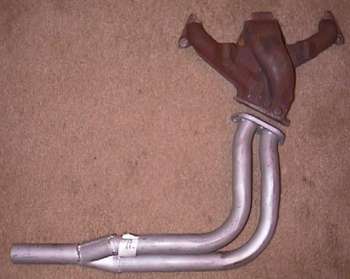

   Now comes the fun part.... installing it.  The center pipe section curves up to meet the manifold next to the engine. Since I'll be installing this system with a European specification cast iron exhaust manifold and twin pipe downpipe, (another recent EBay acquisition), I have to modify the new stainless steel center pipe.


     I'll have to cut off the upsweep in the stainless center pipe to match the end length of the down pipe. The outside diameter of the stock style European spec pipe, fits inside the new Stebro center pipe. This means I won't have to fight with expanding the diameter to properly mate the pipes.




...more to come...
         The Installation and fit
