   73 MKIII GT6 Big Red
         Self Adjusting Rear Brakes


      ...you saw it here first folks! For that fact..
this is the ONLY documentation of the MKIII
self-adjusting rear brake system.
(that I know of anyway!)

   Big Red - 1973 GT6 MKIII Specific Tasks and Procedures

  Exterior     New Sheet Metal     The Paint     That 'Show' paint     Third Brake Light

 Engine

 Carb rebuild   Battery shelf    Lucas/Delco Alternator Swap    Crankcase Ventilation
Ballast bypass Pertronix ZS/HS4/HS6 carb comparison  Hidden Oddity #17
Transmission  Building a D type O/D harness    3 rail rebuild    Clutch     Trooper Starter     Pressure Relief Valve
     I've searched high and low on the internet, as well as through all the manuals (too many to count) and NONE of them, document anything about this super rare brake setup of the late GT6 MKIII's.

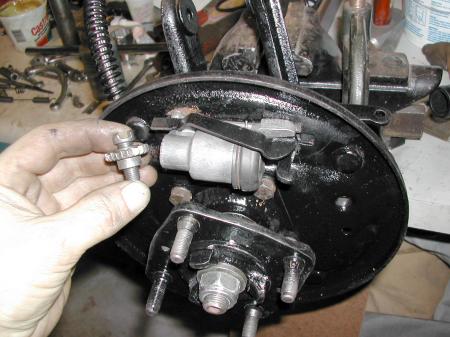

   Instead of the normal shoe contact 'U' to capture the shoe on the non-plunger side of the hydraulic brake cylinder, there is a little 'racket' mechanism in the end of the cylinder. These cylinders were apparently used on a few other models of Triumphs (Dolomites??) but no other Triumph imported into North America. Only the late model GT6 MKIII.

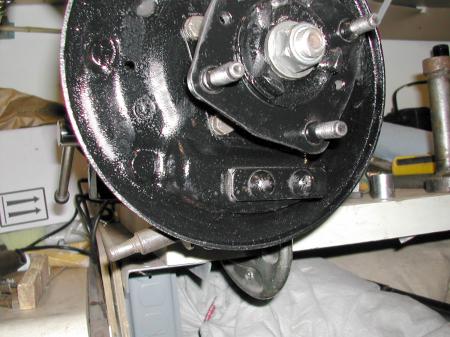

   Most Spitfires and GT6s, have a small adjustment mechanism at the bottom of the back plate. As you screwed it in, the brake shoes were forced out, closer to the drum. As you can see here, there is a fixed stack of plates riveted to the backplate to capture the bottom edge of the shoes, No manual adjustment is available or needed here.

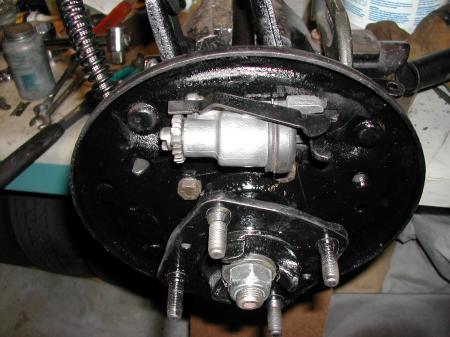

     The little 'bar' across the top of the hydraulic cylinder, is attached to the park brake lever. The little racket wheel, plugged into the end of the cylinder, has a threaded screw in it, in which the brake shoe top edge rides. Every time you pull up on the hand brake lever, this little bar snags a racket tooth and unscrews it a bit. This effectively 'extends' the distance between the top edges of the brake shoes, thus performing the task of the usual bottom edge adjuster. If the shoes are already out far enough, the bar doesn't return far enough to grab the next tooth, so it only rackets as needed.

   So, not only is the cylinder unique to the line of   Spits and Gt6s, so are the brake shoes, backplates, and hydraulic cylinders.    :-|
